Topdon

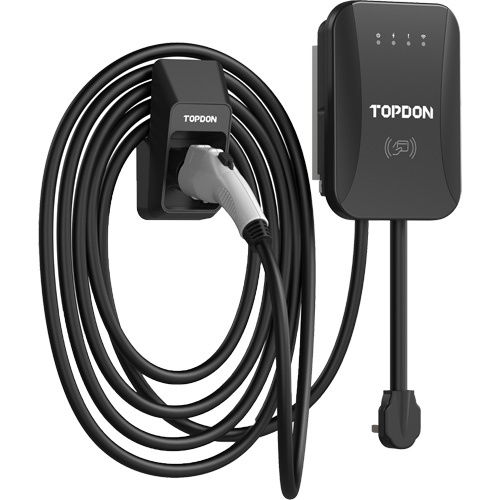

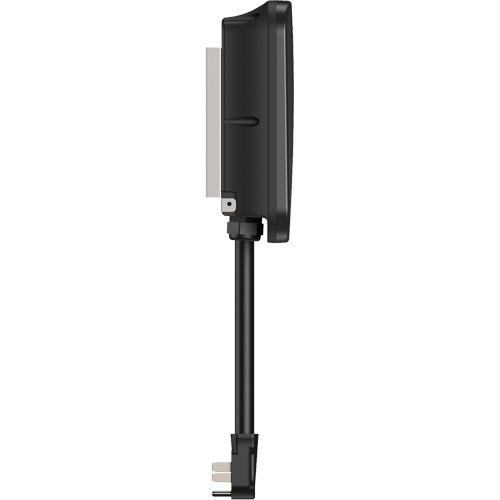

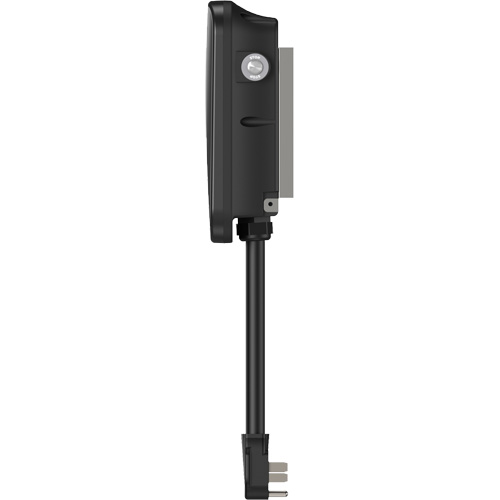

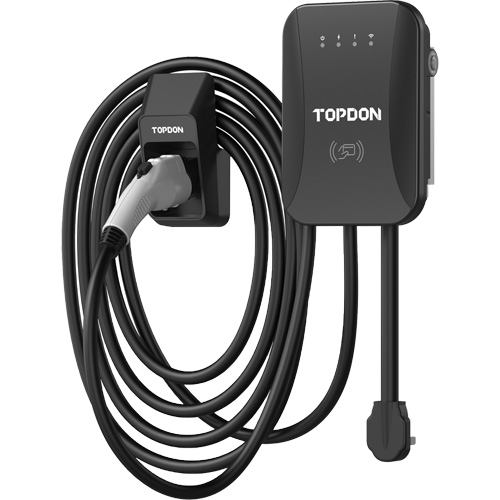

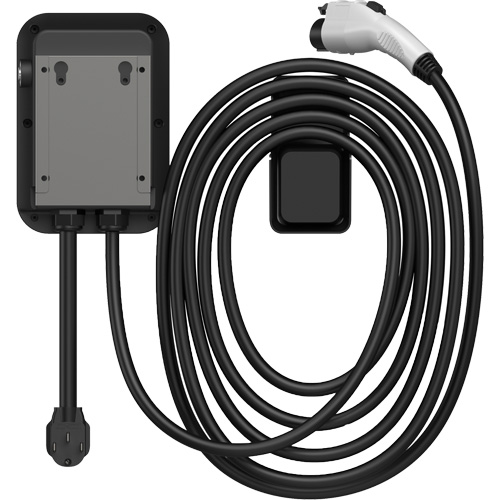

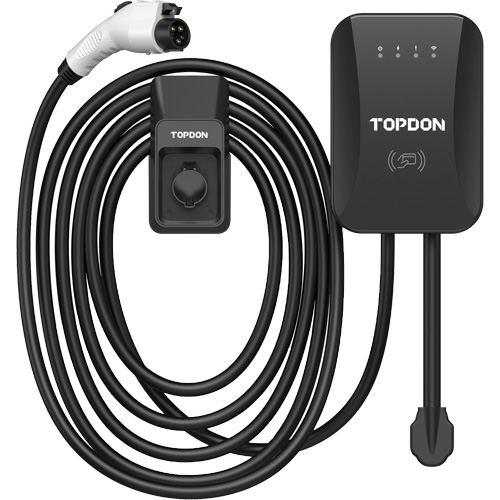

PulseQ AC Home EV Charger with RFID Mode, 40 A, Level 2 AC, Type 1 (SAE J1772) Connector

Model: FLV468

Mfr. No.: EC00175

  • PulseQ AC Home EV Charger with RFID Mode, 40 A, Level 2 AC, Type 1 (SAE J1772) Connector Oxymax Inc

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$732.00 / Each

0 In Stock

Includes

  • AC EV Charger (14-50P input power cable & 5/7.5m charging cable)
  • Charging Dock
  • Wall-Mounting Accessories
  • User's Manual
  • Quick User Guide
  • Quality Certificate
  • Wall Installation Template
  • M6×63mm Expansion Bolt
  • M5×40mm Expansion Bolt
  • Charging Dock Installation Template
  • IC Card

Manufacturer's Warranty

  • 3 Years

Max Power Output

40 A

Type

Level 2 AC

Connector Type

Type 1 (SAE J1772)

Operating Temperature

-22°F - 131°F (-30°C - 55°C )

Charging Cable Length

24.6'

Dimensions

8.66" W x 12.2" L x 3.74" H

Weight

15.43 lbs.

Charging Modes

App-Controlled, Plug-and-Play, RFID Mode

AC Power Input/Output Voltage

Level 2 AC 208-240V

AC Power Adjustable Current

6-40A

Country Of Origin

China

  • Works with Tesla vehicles using an adapter
  • Ideal for homes with multiple EV brands
  • UL‑listed for safety, meeting U.S. national electrical standards
  • Equipped with a NEMA 14‑50 plug for high‑performance charging
  • Supports scheduling, monitoring, and current adjustment through the PulseQ app
  • App allows charging cost tracking, mileage estimates, notifications, and multi‑user control
  • Plug‑and‑Play mode begins charging automatically when connected
  • Automatically defaults to Plug‑and‑Play mode if Wi‑Fi or app connection is lost
  • Compact, space‑saving design suitable for garages and small installations
  • Multiple mounting options: wall mount, pole mount, and outdoor installation
  • Fast 15‑minute setup when a NEMA 14‑50R outlet and Wi‑Fi are already in place
  • Built with flame‑retardant materials for added durability
  • NEMA Type 4 enclosure: dust‑proof, water‑resistant, and outdoor‑safe
  • Includes a rugged 16.4 ft charging cable rated up to 40A
  • Connector durability rated for up to 10,000 cycles
  • Comprehensive safety protections: under/over‑voltage, overload, over‑temp, short circuit, ground fault, earth leakage (CCID20), lightning protection
