Lincoln Electric

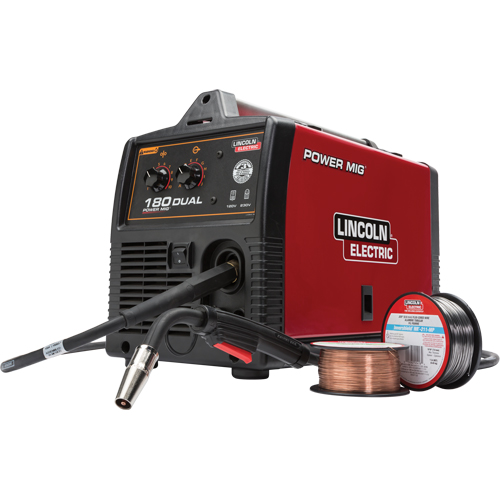

Power MIG® 180 Dual Wire Feed Welders, 120 V, 1 Ph, 60 Hz

Model: TTV164

Mfr. No.: K3018-2

  • Power MIG® 180 Dual Wire Feed Welders, 120 V, 1 Ph, 60 Hz Oxymax Inc

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Discontinued

Voltage Input Power

120 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Rated Output Current/Voltage/Duty Cycle

120V (90A/19.5V/20%)

Input Current @ Rated Output

20A

Output Range

120V (30-140 A), 230V (30-180 A)

Wire Feed Speed Range

50-500 ipm (1.3-12.7 m/min)

  • Dual 120 or 208/230 volt input power capability, you can use the same machine to weld at home and generator-driven environments, or choose 208/230 volt input power for shop or out on the job site applications on thicker materials
  • Ideal for sheet metal and light frame autobody work, farm or small shop applications
  • Diamond Core Technology(TM) - Delivers a forgiving arc, excellent out-of-position arc action, low spatter and a wide voltage sweet spot at a given wire feed speed for steel, stainless steel or aluminum
  • Dual gear-driven cast aluminum drive rolls deliver positive traction
  • Patented split wire guides ensure optimal wire alignment and a brass-to-brass gun connection aids critical conductivity
  • Large industrial closed-design drive motor improves torque and enhances trouble-free performance
  • No hassle tool-less design for input power changes, wire spool mounting, wire drive service and polarity changes
  • Spool Gun Ready, remove the standard MIG gun and plug in the economical Magnum(R) 100SG spool gun TTU118 (optional) for enhanced aluminum wire feeding performance
  • 3-year warranty on machine, 90 days on torch

ESAB

Rebel™ EMP 215ic Portable Welding Machine, 230 V/120 V, 1 Ph, 50/60 Hz

  • Manufacturer's Warranty: 3 Years

Model: NV067

Mfr. No.: 0558102240

$7,979.00 / Each

0 In Stock
